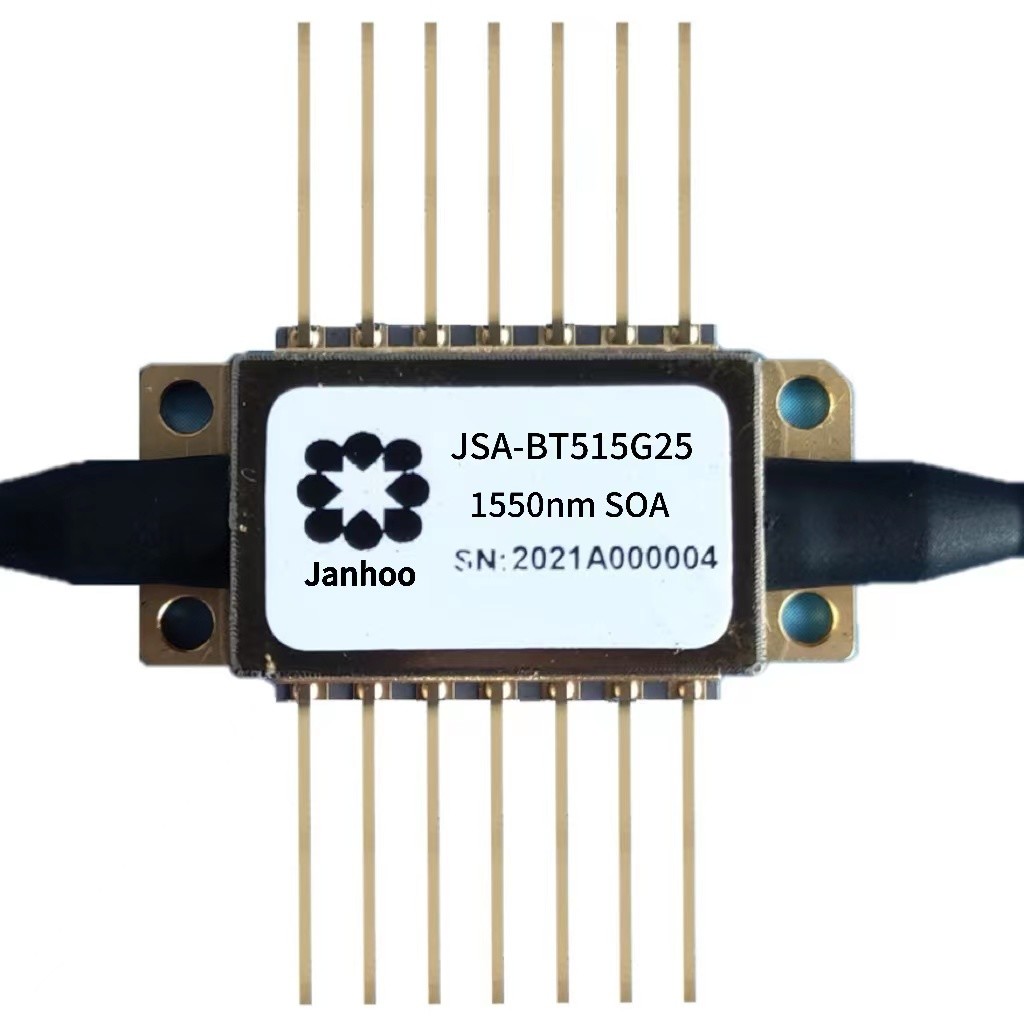

Janhoo 1550nm SOA Semiconductor Optical Amplifier Butterfly

Name: Janhoo 1550nm SOA Semiconductor Optical Amplifier Butterfly
Brand: Janhoo
Price: 700.00 USD

China Janhoo 1550nm SOA Semiconductor Optical Amplifier Butterfly wholesale

Model Number : JSA-BT515G25

Place of Origin : TianJin

Brand Name : Janhoo

Packaging Details : 1 pcs in 1 Cartoon

Supply Ability : 200 Piece/Pieces per Month

Price : $700.00/sets 1-9 sets

Type : SOA

Use : Fiber Sensing System

Warranty Time : one year

Network : None

Wavelength : 1490nm~1590nm

3dB Optical Bandwidth : >55nm

Forward Current(If) : 250mA(typical),400mA(max)

Small Signal Gain : >25dB(@If=250mA)

Saturation Output Power(Psat) : >12dBm(@If=250mA)

Polarization Dependent Gain(PDG) : <2dB

Gain Ripple : <1dB

Turn off extinction ratio : >55dB

Port : Tianjin

Contact Now

Janhoo 1550nm SOA Semiconductor Optical Amplifier Butterfly

1550nm Semiconductor optical amplifier SOA Butterfly

Janhoo’s 1550nm Semiconductor Optical Amplifiers (SOAs) are designed for high gain, high powerful, low PDG SOA which goes into the standard GR-468-CORE.

Applications

* Used for optical sensing system, to replace AOM+EDFA.
* Used for FMCW Lidar to extend detection distance.

* Used for PON network (FTTX) relay amplification.

HighLights

* High Electric-optical Conversion Efficiency, Low Power Consumption.
* Built-in Isolator.
* Low PDG.

* Support polarization-maintaining amplification.

Typical Characteristics

Specifications ( @25℃)

Parameter	Symbol	Working conditions	Min.	Typ.	Max.	Unit
Wavelength	λ	---	1490	---	1590	nm
Operating Wavelength	Δλ	@-3dB	55	---	60	nm
Drive Current	If	---	---	250	400	mA
Saturation Power	Psat	If=120mA	12	---	15	dBm
Small Signal Gain	G	---	25	---	30	dB
Turn off extinction ratio		---	---	50	---	dB
Polarization Dependent Gain	PDG	---	---	1.0	2.0	dB
Forward Voltage	Vf	---	---	---	1.8	V
Spot Size	θL/θT	---	---	16/30	---	°
Operating Temperature	TC	I=Iop	-10	---	70	℃
Storage Temperature	Tstg	---	-40	---	85	℃

Dimensions and Pin Definition

Janhoo 1550nm SOA Semiconductor Optical Amplifier Butterfly Images
